Gi Robotics introduces its advanced Compact Robot—an ideal solution where space is limited, but performance cannot be compromised. Designed with a rugged structure and a high protection rating, this robot delivers consistent precision, even in demanding industrial environments.
Engineered for smart integration, it features a compact body, advanced servo motors, and built-in components like a wire spool and torch for seamless operation. From arc welding to material handling, Gi Robotics compact robot ensures superior path accuracy, minimal maintenance, and long-lasting durability—perfect for modern automation needs.
|
|
|||||
|---|---|---|---|---|---|
|

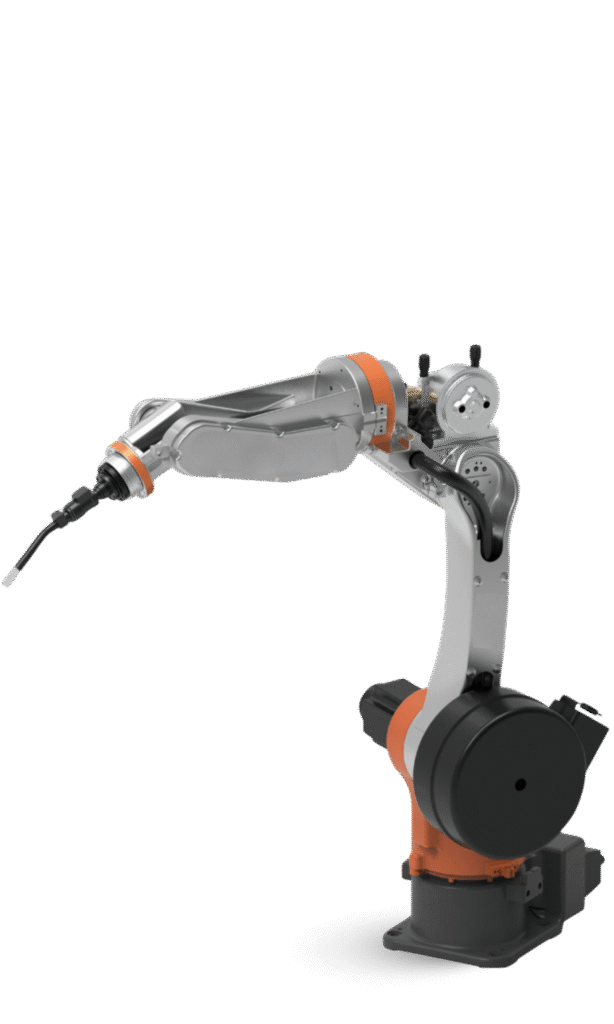

Payload
|
6KG
|
Reach
|
1400mm
|
Axis
|
6
|
|
Repeatablity
|
±0.04mm
|
Power
Capacity |
21KVA (robot)
|
Weight Of
Manipulator |
620KG
|
|
Installation
method |
Vertical installation
|
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+110°,-70°; RV gear reduce
|
|
J3
|
+70°,-120°; RV gear reduce
|
|
J4
|
±150°; RV gear reduce
|
|
J5
|
+105°,-110°; RV gear reduce
|
|
J6
|
±320°/±360°;HD reducer
|
|
|
|
|---|---|
|
J1
|
176°/S
|
|
J2
|
173°/S
|
|
J3
|
170°/S
|
|
J4
|
295°/S
|
|
J5
|
390°/S
|
|
J6
|
307°/S
|
|
|
|||||
|---|---|---|---|---|---|
|

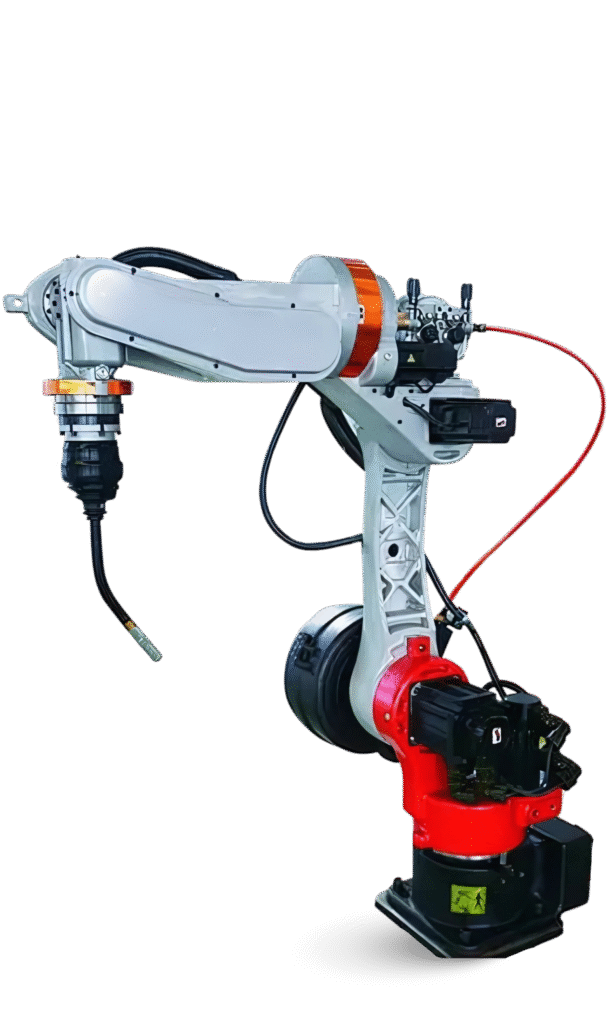

Payload
|
10KG
|
Reach
|
1400mm
|
Axis
|
4
|
|
Repeatablity
|
±0.07mm
|
Power
Capacity |
6KVA (robot)
|
Weight Of
Manipulator |
155KG
|
|
Installation
method |
Vertical installation
|
Application
|
Loading/Unloading
|
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+80°,-30°; RV gear reduce
|
|
J3
|
+70°,-25°; RV gear reduce
|
|
J4
|
±360°; RV gear reduce
|
|
|
|
|---|---|
|
J1
|
176°/S
|
|
J2
|
173°/S
|
|
J3
|
170°/S
|
|
J4
|
222°/S
|
|
|
|||||
|---|---|---|---|---|---|
|

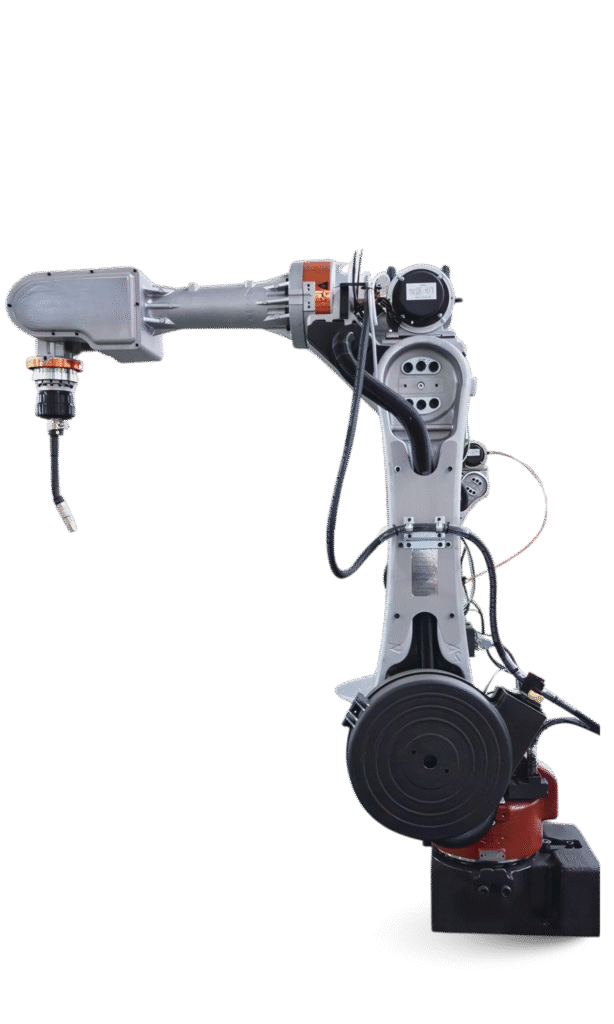

Payload
|
6KG/20KG
|
Reach
|
1900mm
|
Axis
|
6
|
|
Repeatablity
|
±0.07mm
|
Power
Capacity |
6KVA (robot)
|
Weight Of
Manipulator |
285KG
|
|
Installation
method |
Vertical installation
|
Application
|
Arc welding/
Palletizing/Loading & Unloading |
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+110°,-70°; RV gear reduce
|
|
J3
|
+70°,-120°; RV gear reduce
|
|
J4
|
±150°; RV gear reduce
|
|
J5
|
+105°,-110°; RV gear reduce
|
|
J6
|
±320°/±360°;HD gear reducer
|
|
|
|
|---|---|
|
J1
|
153°/S
|
|
J2
|
111°/S
|
|
J3
|
148°/S
|
|
J4
|
200°/S
|
|
J5
|
390°/S/365°/S
|
|
J6
|
307°/S/297°/S
|
|
|
|||||
|---|---|---|---|---|---|
|
Payload
|
50KG
|
Reach
|
2100mm
|
Axis
|
6
|
|
Repeatablity
|
±0.1mm
|
Power
Capacity |
21KVA (robot)
|
Weight Of
Manipulator |
620KG
|
|
Installation
method |
Vertical installation
|
Application
|
Palletizing/
Loading & unloading |
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+90°,-50°; RV gear reduce
|
|
J3
|
+60°,-95°; RV gear reduce
|
|
J4
|
±155°; RV gear reduce
|
|
J5
|
±115°; RV gear reduce
|
|
J6
|
±360°; HD gear reducer
|
|
|
|
|---|---|
|
J1
|
67°/S
|
|
J2
|
55°/S
|
|
J3
|
117°/S
|
|
J4
|
150°/S
|
|
J5
|
146°/S
|
|
J6
|
163°/S
|
|
|
|||||
|---|---|---|---|---|---|
|

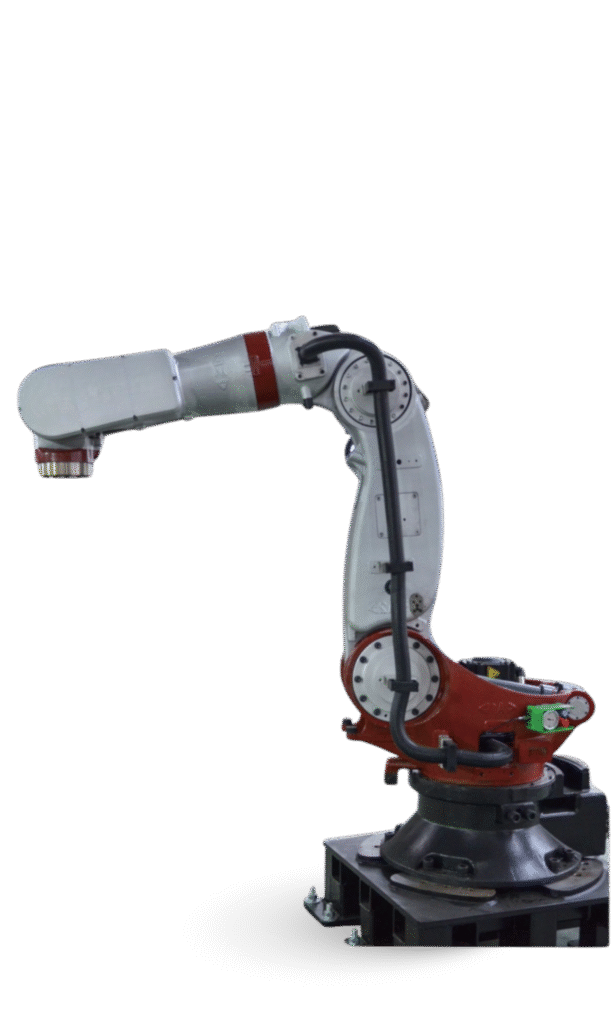

Payload
|
130KG
|
Reach
|
2300mm
|
Axis
|
6
|
|
Repeatablity
|
±0.1mm
|
Power
Capacity |
21KVA (robot)
|
Weight Of
Manipulator |
1080KG
|
|
Installation
method |
Vertical installation
|
Application
|
Resistance Welding/
Palletizing/ Loading & Unloading |
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+95°,-55°; Dual RV gear reduce
|
|
J3
|
+55°,-110°; Dual RV gear reduce
|
|
J4
|
±155°; RV gear reduce
|
|
J5
|
±115°; RV gear reduce
|
|
J6
|
±360°; HD gear reducer
|
|
|
|
|---|---|
|
J1
|
67°/S
|
|
J2
|
75°/S
|
|
J3
|
88°/S
|
|
J4
|
148°/S
|
|
J5
|
148°/S
|
|
J6
|
162°/S
|
|
|
|||||
|---|---|---|---|---|---|
|
Payload
|
160KG
|
Reach
|
2700mm
|
Axis
|
6
|
|
Repeatablity
|
±0.1mm
|
Power
Capacity |
21KVA (robot)
|
Weight Of
Manipulator |
1400KG
|
|
Installation
method |
Vertical installation
|
Application
|
Resistance Welding/
Palletizing/ Loading & Unloading |
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+95°,-50°; Dual RV gear reduce
|
|
J3
|
+55°,-110°; Dual RV gear reduce
|
|
J4
|
±155°; RV gear reduce
|
|
J5
|
±110°; RV gear reduce
|
|
J6
|
±360°; HD gear reducer
|
|
|
|
|---|---|
|
J1
|
57°/S
|
|
J2
|
59°/S
|
|
J3
|
70°/S
|
|
J4
|
99°/S
|
|
J5
|
108°/S
|
|
J6
|
141°/S
|
|
|
|||||
|---|---|---|---|---|---|
|

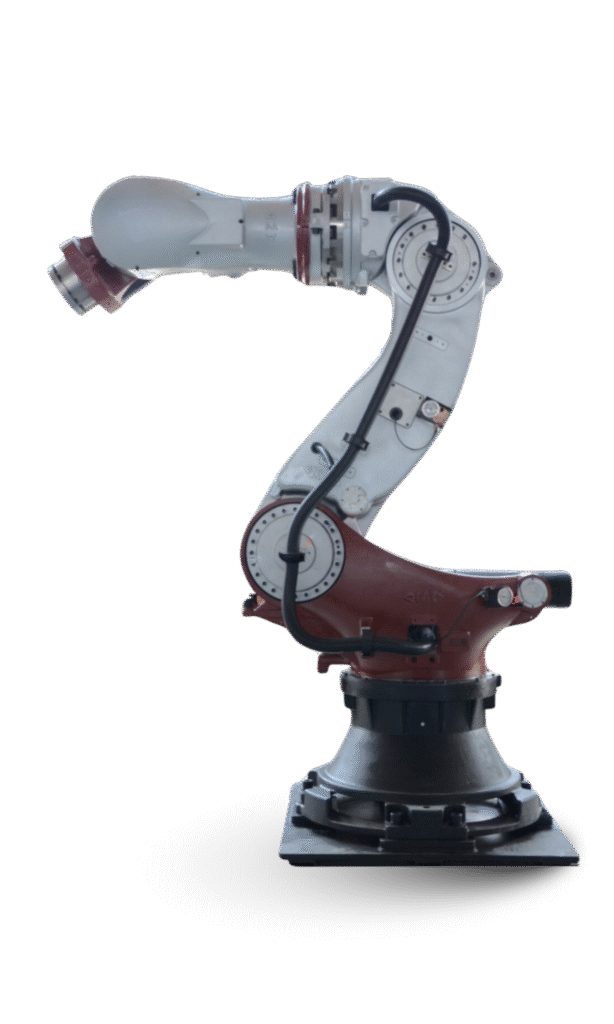

Payload
|
500KG
|
Reach
|
3000mm
|
Axis
|
6
|
|
Repeatablity
|
±0.1mm
|
Power
Capacity |
45KVA(robot）
|
Weight Of
Manipulator |
2400KG
|
|
Installation
method |
Vertical installation
|
Application
|
Stir Friction Welding/
Resistance Welding/ Palletizing/ Loading & Unloading |
|
|
|
|
|---|---|
|
J1
|
±180°; RV gear reducer
|
|
J2
|
+90°,-55°; Dual RV gear reduce
|
|
J3
|
+70°,-160°; Dual RV gear reduce
|
|
J4
|
±155°; RV gear reduce
|
|
J5
|
±120°; RV gear reduce
|
|
J6
|
±360°; HD gear reducer
|
|
|
|
|---|---|
|
J1
|
44°/S
|
|
J2
|
46°/S
|
|
J3
|
55°/S
|
|
J4
|
100°/S/104.7°/S
|
|
J5
|
104°/S/95.9°/S
|
|
J6
|
60°/S
|
