The Gi Robotics NB12 Series robot is engineered with an all-cast aluminum body, making it 20% lighter than comparable models. Its compact design, built-in motor, and internal cable routing enhance flexibility, while a base size of just 250×250 mm—47% smaller than others in its class—ensures easy installation in space-constrained environments.
Built to perform in demanding conditions, the NB12 offers IP67 protection for the body and IP54 for the controller cabinet with dual-cycle heat dissipation. With a 20% boost in working speed and ±0.03 mm repeatability, it meets high-precision and high-speed production requirements with ease.
|
|
|||||
|---|---|---|---|---|---|
|

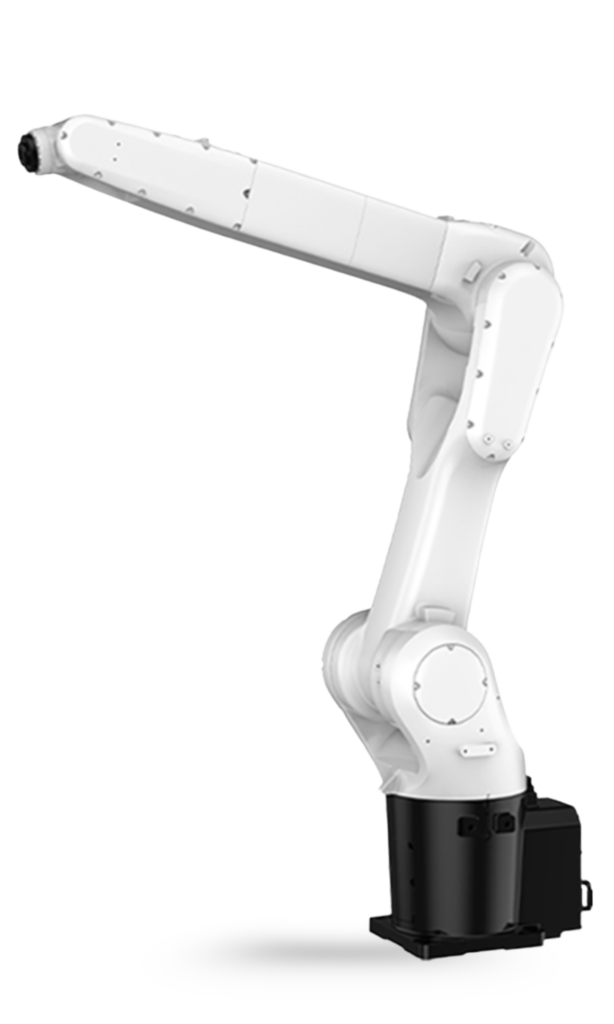

Payload
|
10 kg
|
Weight
|
About 117 kg
|
Reach
|
1602 mm
|
|
DOF
|
6
|
IP Rating
|
IP67
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.03 mm
|
Operating
Temperature |
0℃~+45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
1*φ8+2*φ6, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-170° to +170°
|
245°/s
|
|
Axis 2
|
-105° to +145°
|
245°/s
|
|
Axis 3
|
-210° to +70°
|
290°/s
|
|
Axis 4
|
-270° to +270°
|
435°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

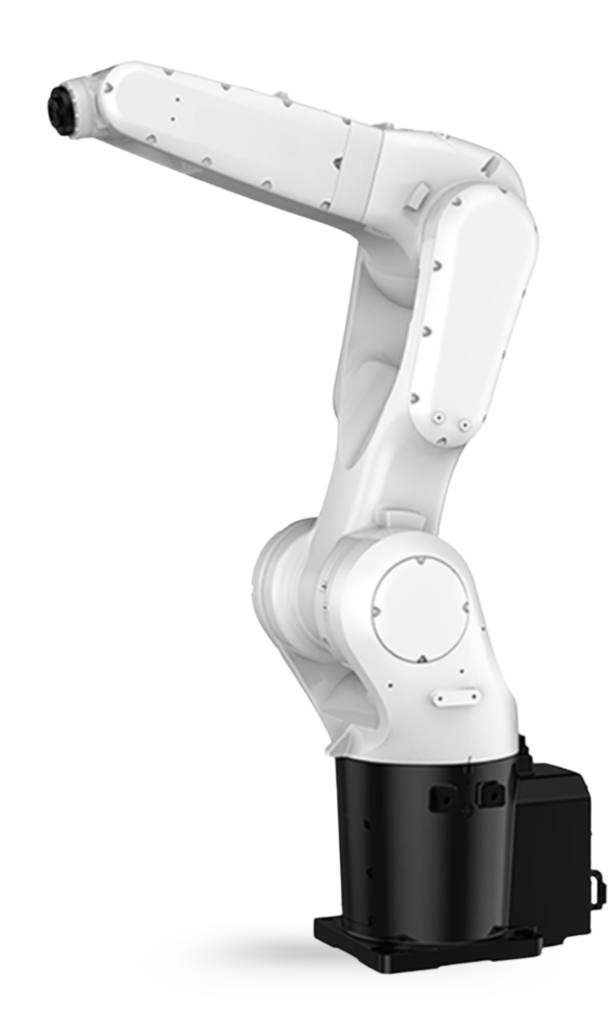

Payload
|
16 kg
|
Weight
|
About 112 kg
|
Reach
|
1102 mm
|
|
DOF
|
6
|
IP Rating
|
IP67
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.03 mm
|
Operating
Temperature |
0℃~+45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
1*φ8+2*φ6, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-170° to +170°
|
245°/s
|
|
Axis 2
|
-105° to +145°
|
245°/s
|
|
Axis 3
|
-210° to +70°
|
290°/s
|
|
Axis 4
|
-270° to +270°
|
435°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

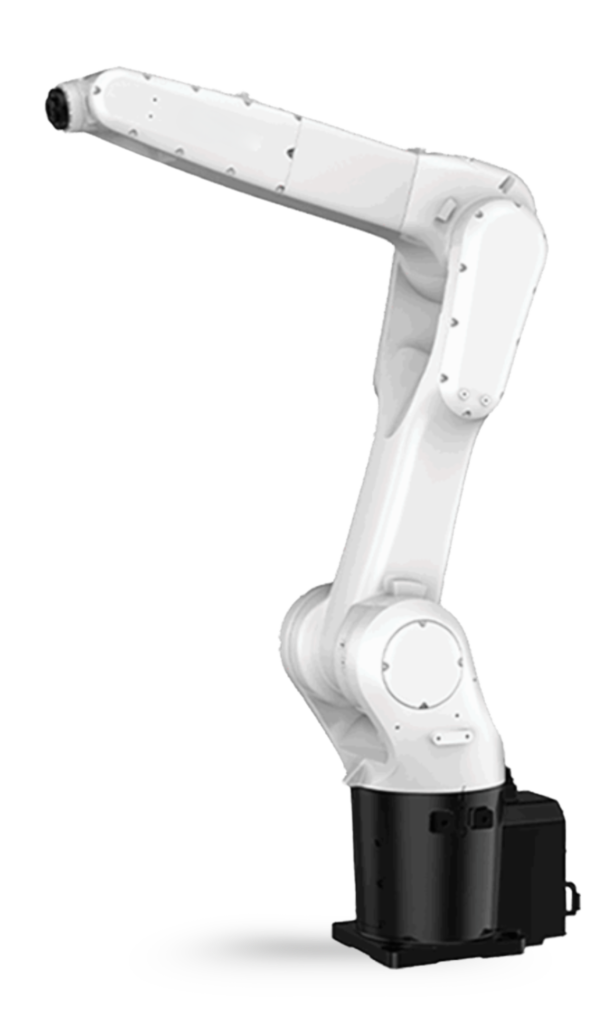

Payload
|
12 kg
|
Weight
|
About 115 kg
|
Reach
|
1442 mm
|
|
DOF
|
6
|
IP Rating
|
IP67
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.03 mm
|
Operating
Temperature |
0℃~+45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
1*φ8+2*φ6, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-170° to +170°
|
245°/s
|
|
Axis 2
|
-105° to +145°
|
245°/s
|
|
Axis 3
|
-210° to +70°
|
290°/s
|
|
Axis 4
|
-270° to +270°
|
435°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
