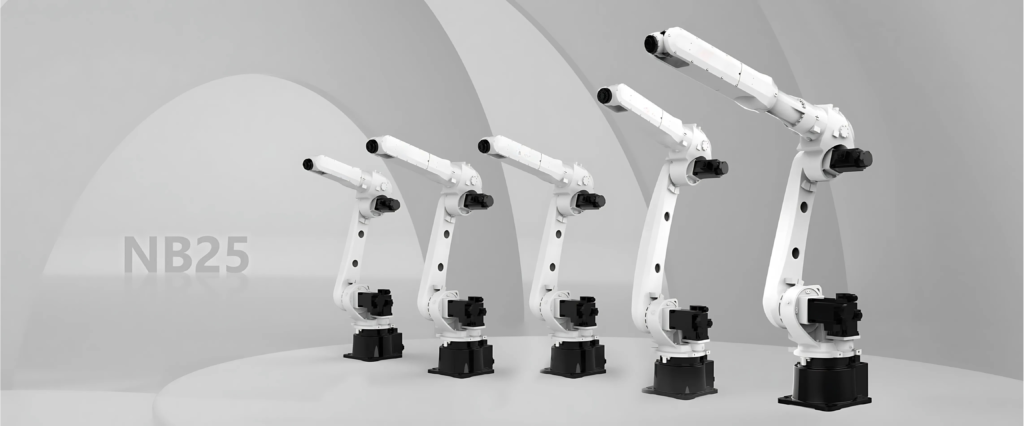

Gi Robotics NB25 Series robots offer a 25% increase in payload capacity compared to the previous generation.
Designed with high inertia motion characteristics, they are ideal for tasks demanding large inertia and rapid takt time.
Featuring an IP67-rated wrist and an optimized sealing design, the NB25 Series performs reliably even in harsh environments.
|
|
|||||
|---|---|---|---|---|---|
|

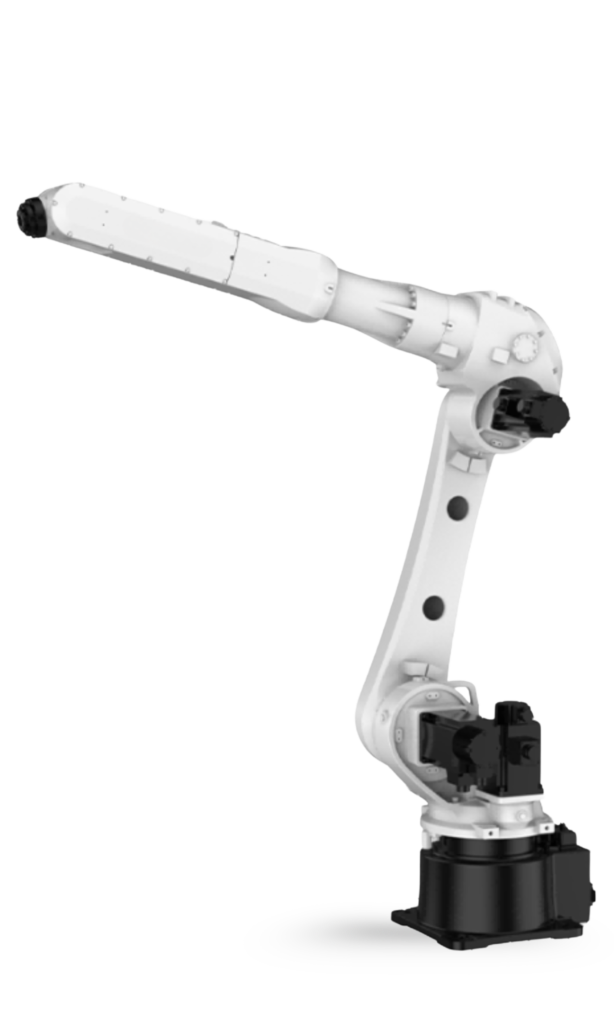

Payload
|
12 kg
|
Weight
|
About 262 kg
|
Reach
|
2110 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.05 mm
|
Operating
Temperature |
0℃ to +45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ12, 8bar
|
Signal
|
24 channels (30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-180° to +180°
|
204°/s
|
|
Axis 2
|
-99° to +156°
|
186°/s
|
|
Axis 3
|
-200° to +85°
|
182°/s
|
|
Axis 4
|
-180° to +180°
|
492°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

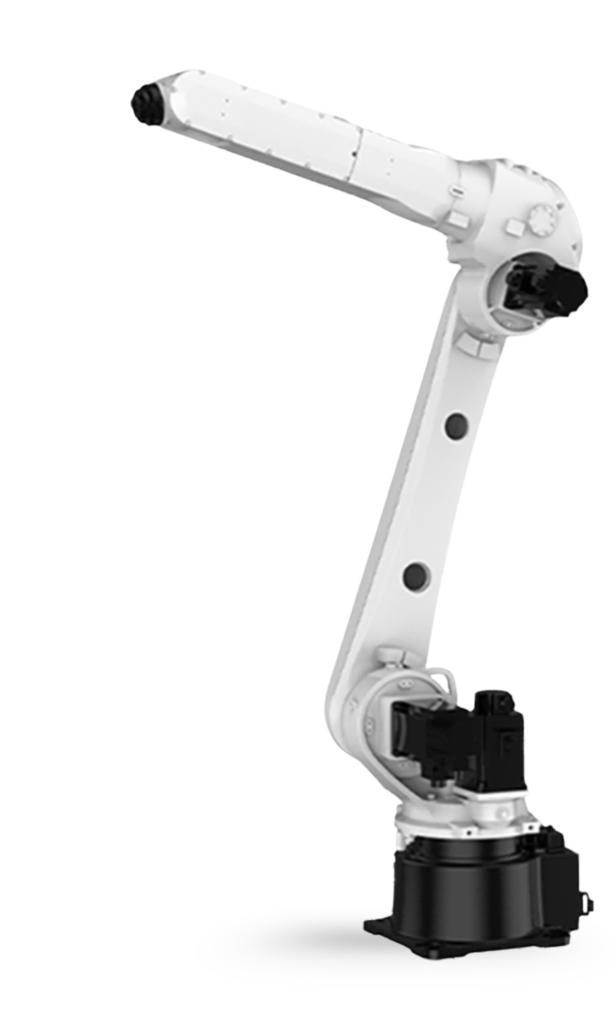

Payload
|
20 kg
|
Weight
|
About 264kg
|
Reach
|
2013 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.05 mm
|
Operating
Temperature |
0℃~+40℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ8, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-180° to +180°
|
204°/s
|
|
Axis 2
|
-99° to +156°
|
186°/s
|
|
Axis 3
|
-200° to +75°
|
182°/s
|
|
Axis 4
|
-180° to +180°
|
492°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|
Payload
|
25 kg
|
Weight
|
About 256 kg
|
Reach
|
1813 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.05 mm
|
Operating
Temperature |
0℃~+40℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ8, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-180° to +180°
|
204°/s
|
|
Axis 2
|
-99° to +156°
|
186°/s
|
|
Axis 3
|
-200° to +75°
|
182°/s
|
|
Axis 4
|
-180° to +180°
|
492°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

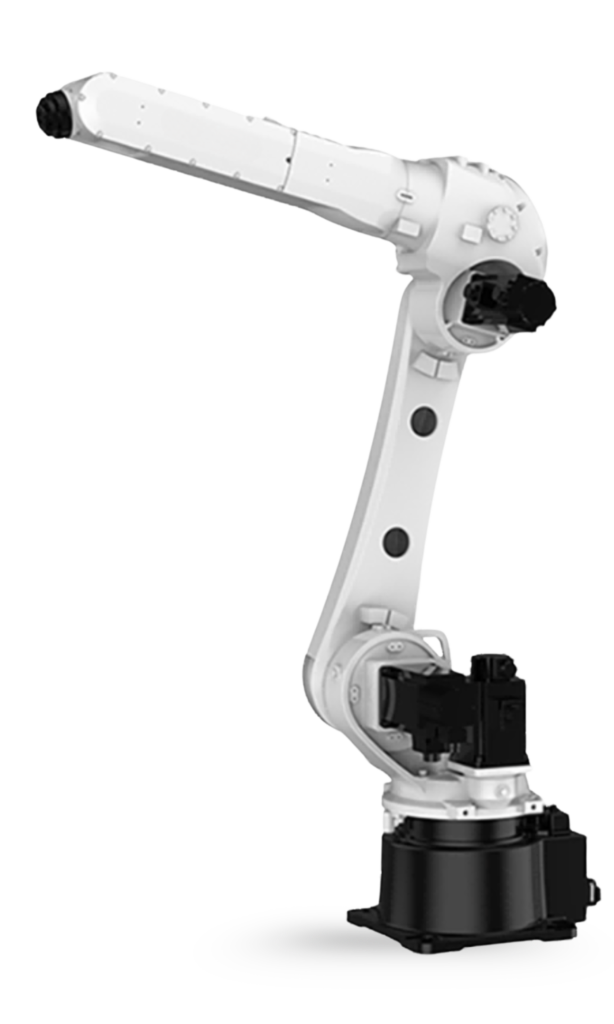

Payload
|
30 kg
|
Weight
|
About 252 kg
|
Reach
|
1617 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.05 mm
|
Operating
Temperature |
0℃~+40℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ8, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-180° to +180°
|
204°/s
|
|
Axis 2
|
-99° to +156°
|
186°/s
|
|
Axis 3
|
-200° to +75°
|
182°/s
|
|
Axis 4
|
-180° to +180°
|
492°/s
|
|
Axis 5
|
-135° to +135°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
705°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

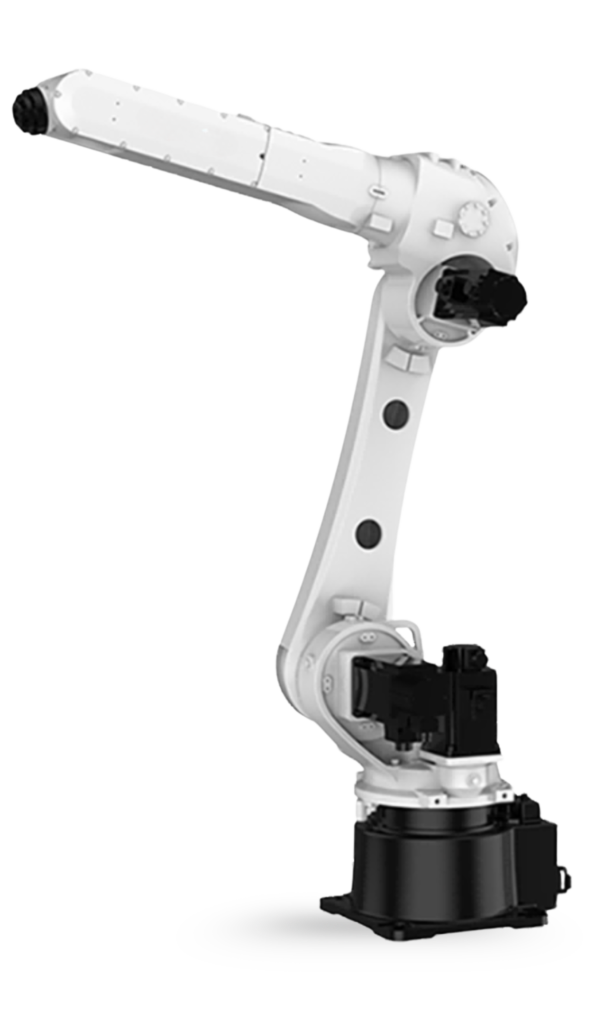

Payload
|
35 kg
|
Weight
|
About 256 kg
|
Reach
|
1813 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.05 mm
|
Operating
Temperature |
0℃~+40℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ8, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-180° to +180°
|
204°/s
|
|
Axis 2
|
-99° to +156°
|
186°/s
|
|
Axis 3
|
-200° to +75°
|
182°/s
|
|
Axis 4
|
-180° to +180°
|
310°/s
|
|
Axis 5
|
-135° to +135°
|
360°/s
|
|
Axis 6
|
-360° to +360°
|
444°/s
|
