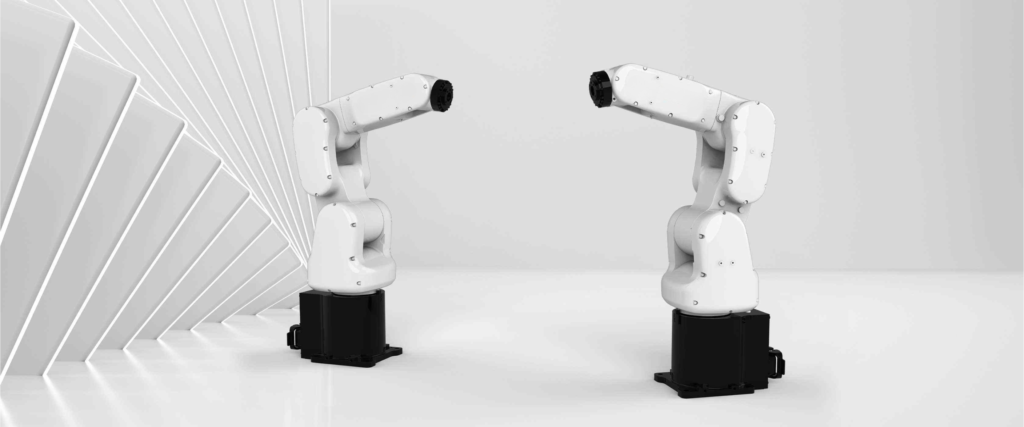

Compared to the first-generation XB4 series, Gi NB4 robots are more compact and lightweight, making them ideal for space-constrained environments like electronics manufacturing and machine tool operations.
With faster speeds, reduced takt time, and industry-leading repeatability, the NB4 ensures high precision and operational efficiency.
Its complete IP67 protection rating ensures long-term stability and reliability, even in the most challenging industrial conditions.
|
|
|||||
|---|---|---|---|---|---|
|

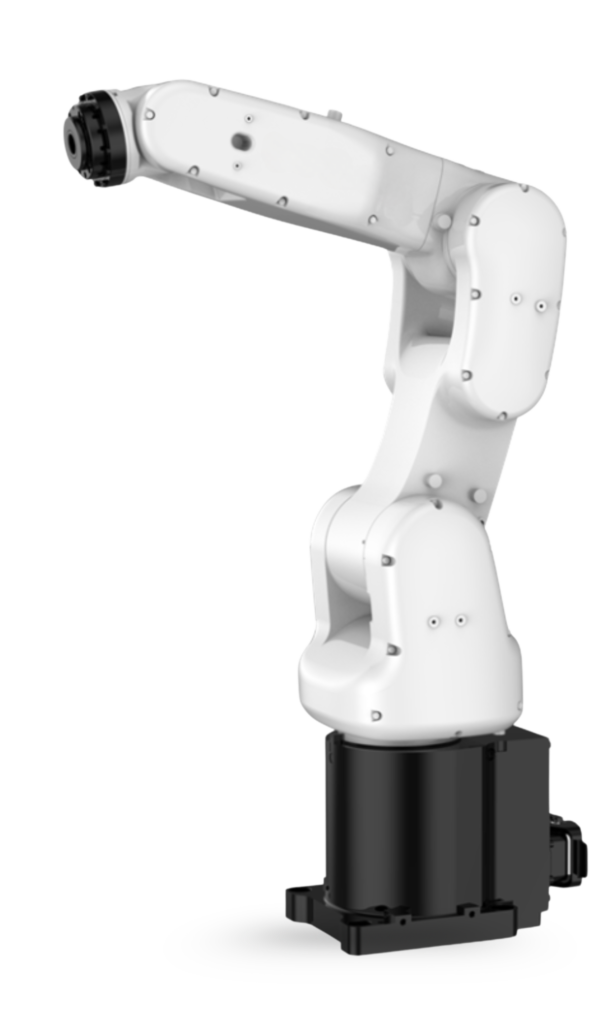

Payload
|
4 kg
|
Weight
|
About 22 kg
|
Reach
|
580 mm
|
|
DOF
|
6
|
IP Rating
|
IP67
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.02 mm
|
Operating
Temperature |
0℃~+40℃
|
Storage
Temperature |
-10℃~+55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
4-Φ4，5bar
|
Signal
|
8 channels
(30V, 0.5A) |
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-170°~+170°
|
450°/s
|
|
Axis 2
|
-90°~+130°
|
318°/s
|
|
Axis 3
|
-200°~+55°
|
288°/s
|
|
Axis 4
|
-170°~+170°
|
550°/s
|
|
Axis 5
|
-120°~+120°
|
450°/s
|
|
Axis 6
|
-360°~+360°
|
612°/s
|
|
|
|||||
|---|---|---|---|---|---|
|
Payload
|
4 kg
|
Weight
|
About 21 kg
|
Reach
|
475 mm
|
|
DOF
|
6
|
IP Rating
|
IP67
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.02 mm
|
Operating
Temperature |
0℃ to +40℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤70 dB(A)
|
AIR
|
4-Φ4，5bar
|
Signal
|
8 channels (30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-170° to +170°
|
450°/s
|
|
Axis 2
|
-90° to +130°
|
360°/s
|
|
Axis 3
|
-200° to +55°
|
360°/s
|
|
Axis 4
|
-170° to +170°
|
550°/s
|
|
Axis 5
|
-120° to +120°
|
450°/s
|
|
Axis 6
|
-360° to +360°
|
860°/s
|
