The Gi NB80 Series robots are designed to deliver superior performance with higher payload capacity and extended motion range, surpassing other robots in their class. This makes them ideal for a wide range of intelligent automation applications across demanding industries.
With high inertia motion capabilities, the NB80 Series excels in handling heavy-duty operations involving large inertia. Built for rugged environments, the robot’s robust design and high-level protection ensure reliable performance even in the harshest conditions, making it a powerful and dependable solution for industrial automation.
|
|
|||||
|---|---|---|---|---|---|
|

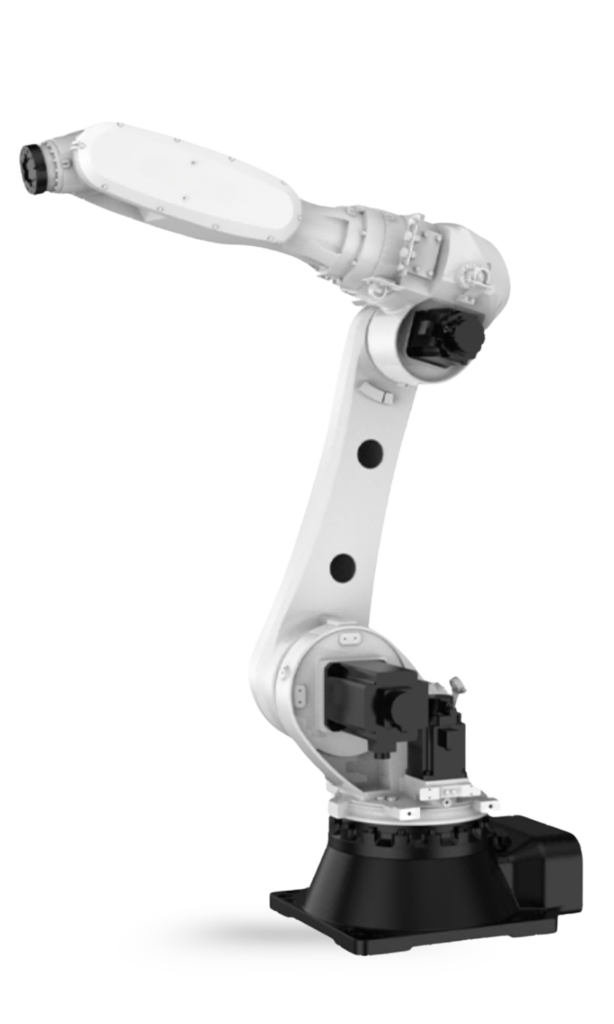

Payload
|
80 kg
|
Weight
|
About 635 kg
|
Reach
|
2200 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.06 mm
|
Operating
Temperature |
0℃~+45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Noise
Level |
≤75 dB(A)
|
AIR
|
2-Φ12, 8bar
|
Signal
|
24 channels (30V, 0.5A)
|
|
Mounting
Method |
Floor, Ceiling
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-185° to +185°
|
170°/s
|
|
Axis 2
|
-90° to +155°
|
145°/s
|
|
Axis 3
|
-210° to +80°
|
170°/s
|
|
Axis 4
|
-200° to +200°
|
285°/s
|
|
Axis 5
|
-130° to +130°
|
285°/s
|
|
Axis 6
|
-360° to +360°
|
285°/s
|
|
|
|||||
|---|---|---|---|---|---|
|

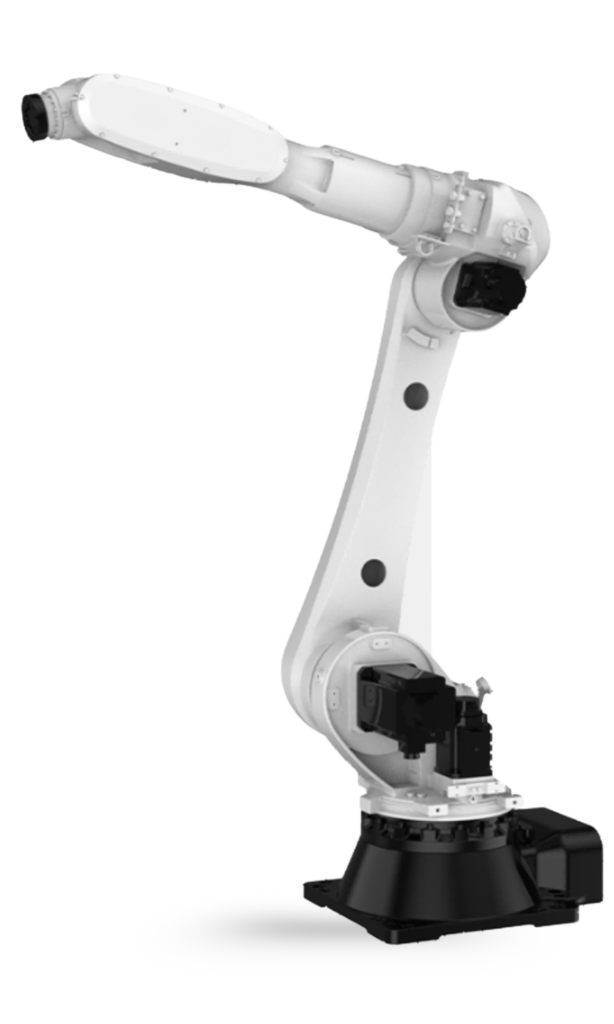

Payload
|
50 kg
|
Weight
|
About 645 kg
|
Reach
|
2598 mm
|
|
DOF
|
6
|
IP Rating
|
IP65(Wrist IP67)
|
Drive Mode
|
AC servo
|
|
Repeatablity
|
±0.08 mm
|
Operating
Temperature |
0℃~45℃
|
Storage
Temperature |
-10℃ to +55℃
|
|
Mounting
Method |
Floor, Ceiling
|
AIR
|
2-Φ12, 8bar
|
Signal
|
24 channels
(30V, 0.5A)
|
|
|
||
|---|---|---|
|
Axis
|
Range of Motion
|
Maximum Speed
|
|
Axis 1
|
-185° to +185°
|
170°/s
|
|
Axis 2
|
-90° to +155°
|
180°/s
|
|
Axis 3
|
-210° to +80°
|
180°/s
|
|
Axis 4
|
-200° to +200°
|
285°/s
|
|
Axis 5
|
-130° to +130°
|
285°/s
|
|
Axis 6
|
-360° to +360°
|
360°/s
|
